Sound spectrum analyzer

From Eric

Jump to: navigation, search

The audio spectrum analyzer is composed of three main components :

  • an electret microphone ands its pre-amplifier
  • a BA3830S spectrum analyzer chip
  • a set of LM3914 led drivers.

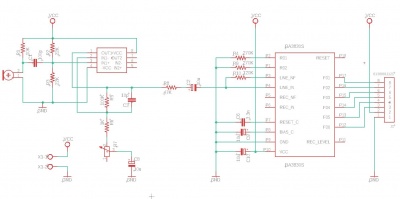

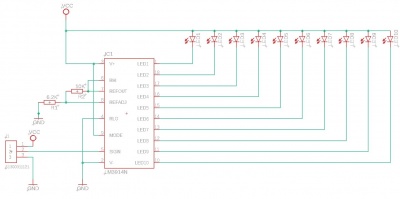

Here are the schematics:

Sound spec anal schematics 1.jpg
Sound spec anal schematics 2.jpg

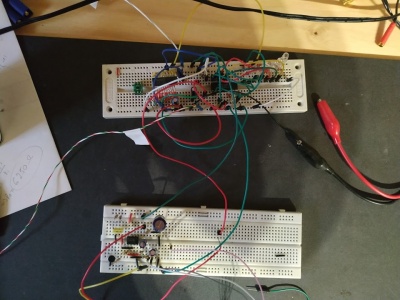

The initial setup on a breadboard:

Sound spec anal breadboard.jpg

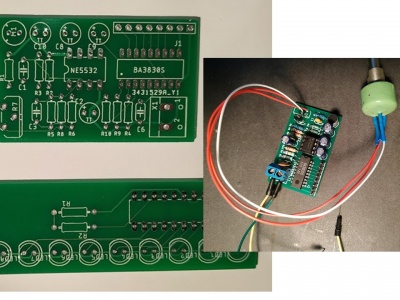

And some pictures of the final result using PCBs:

Sound spec anal live.jpg
Sound spec anal pcbs.jpg
