Revision as of 15:39, 9 July 2023
Experiments carried out in the past (from 2011) are described hereafter: 2022, 2021, 2020, 2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011
July
- I have finally created a PCB for my CRT control (see here).

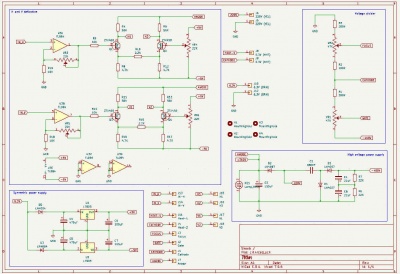

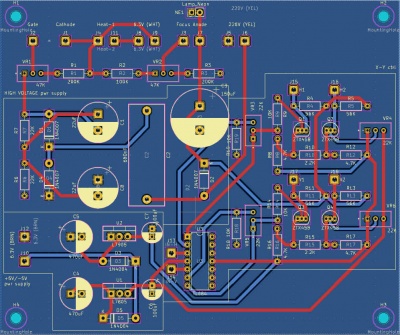

- The schematics and the PCB layout is given below.

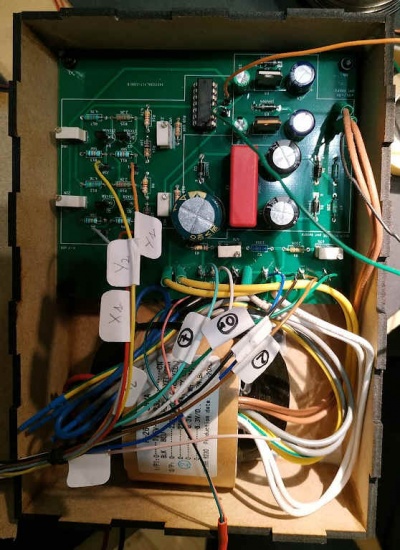

- A picture of the real circuit in its laser-cutted box:
January to June
- Not much activity besides a few experiments with ML on embedded targets...
